Our homes and businesses are highly reliable on continuous uninterrupted power supply. But transient over voltage and direct/indirect lightening strikes can give major damages to the home and commercial appliances. In these cases we use Surge Protection Devices. There are many devices available in India. Some of them are below.

Type 1 SPDs : Used for Low Voltage Distribution and direct lightning strikes
Type 2 SPDs : Used generally in  Distribution/ Transmission system and indirect lightning strikes

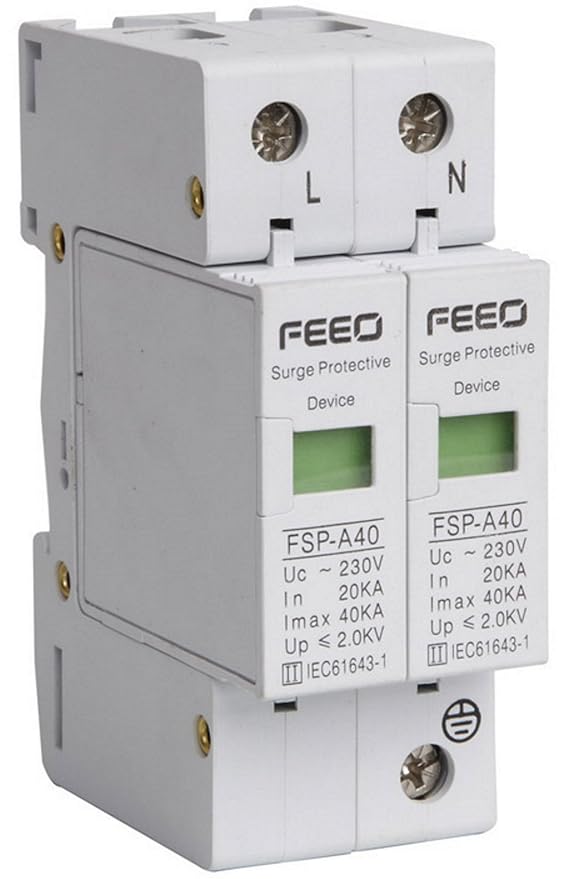

 1. FEEO Plastic AC Double Pole Surge Protection Device

FEEO Plastic AC Double Pole Surge Protection Device SPD 20 kA to 40 kA (White)

This is a type 2 SPD. It has inside over current and over heat protection. The color of visible window shows operating status: Green (normal) / Red (abnormal).

Operating Voltage
220-275 volt
Type
2
Voltage Protection Level
<1 KV
Response Time
 <25 ns
Operating Temperature
-40 to 85 Degree C
Test Standards
IEC61643-1, GB18802.1
Material of Outer Layer
Nylon
Warranty (Other than Surge Damage)
18    months

Amazon Buy Link : https://amzn.to/2XNyZ5T

2.   2. Havells Surge Protection Device


This is a type 2 SPD. It has inside over current and over heat protection. The color of visible window shows operating status: Green (normal) / Red (abnormal).

Operating Voltage
220-275 volt
Type
2
Voltage Protection Level
<1.3 KV (20-40kA)
Response Time
 <25 ns
Operating Temperature
-40 to 85 Degree C
Terminal Capacity
35 sq mm
Material of Outer Layer
Nylon
Warranty (Other than Surge Damage)
18     months

3.     3. Havells Surge Protection Device


This is a type 1+2 SPD. It has inside over current and over heat protection. The color of visible window shows operating status: Green (normal) / Red (abnormal).

Operating Voltage
220-320 volt
Type
1+2
Voltage Protection Level
<1.5 KV (40-70kA)
Response Time
 <25 ns
Operating Temperature
-40 to 85 Degree C
Terminal Capacity
35 sq mm
Material of Outer Layer
Nylon
Warranty (Other than Surge Damage)
18     months

4.     4.Generic Surge Protector

Operating Voltage
690 volts max
Type
2
Voltage Protection Level
<1.5KV (40kA)
Response Time
 <25 ns
Operating Temperature
-40 to 80 Degree C
Terminal Capacity
35 sq mm
Material of Outer Layer
Nylon
Warranty (Other than Surge Damage)
No

5.   5. Hager SPN165R


                                                   SPN165R New SPD 1P pluggable 65kA res.+cont

Operating Voltage
275 volts max
Type
2
Voltage Protection Level
<1.5KV (20-65 kA)
Response Time
 <25 ns
Operating Temperature
-40 to 80 Degree C
Terminal Capacity
35 sq mm
Material of Outer Layer
Nylon
Warranty (Other than Surge Damage)
Unknown


Important Note: Earthing/ Grounding Required for installing these surge arresters.
